Product Details:
|
|
| Place of Origin: | China |
|---|---|
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Pieces Negotiable |
| Price: | Negotiable |
| Packaging Details: | Bag |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union，L/C |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||

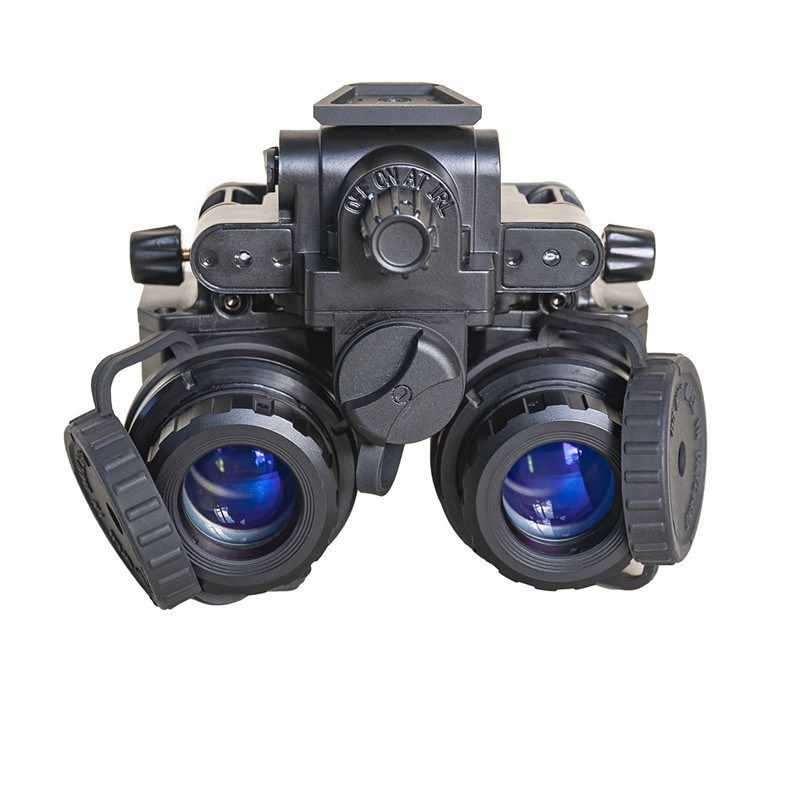

| Product Name: | PVS-31 Binocular Night Vision | Battery Type: | Lithium Battery (cr123x1) / Cr123x4 External Battery Pack |
|---|---|---|---|
| Power Supply: | 1.4-4.2V | Installation: | Head Mounted(standard Universal Helmet Interface) |
| Control Mode: | OFF/ON/AUTO/IR | Power Consumption: | <0.15W |
| Battery Life: | ≥60hrs | Magnification: | 1X±5％ |
| FOV: | 40°±2° | IT: | Gen2+/3 P43/P45 |
| Lens System: | F1.2 / 25mm | Resolution: | 57-64lp/mm |
| Optical Distortion: | 3% Max | Coating: | Multi-layer Broadband Coating |
| Focal Range: | 250mm-∞ | Eye Relief: | 25mm |
| Diopter: | -4 - +2SD | EPD Adjustment Range: | 54-80mm |
| IP Rating: | IP65 | Dimension: | 112 X 105 X 86mm |
| Weight: | 490G(battery Included) | Operating Temp: | -40 - +50℃ |
Product Description
Pvs-31 night vision manual system gain and focus adjustment for custom image quality optimization
Helmet night vision goggles lightweight ergonomic design reduces weight on the head and stress on the neck
Military night vision goggles optional diopter lenses optimize operator preference for visual acuity
Night Vision's rotating binoculars are designed to remain discreet with the helmet when retracted and can optionally be used as monoculars
Night vision goggles military grade works with the tuxedo helmet mount currently in use
Binoculars Night Vision device automatically turns off when stowed; power resumes when deployed
Left and right monocular LEDs alert the operator when the BNVD's battery life is no less than 10 minutes
Night Vision replaceable/upgradeable I2 tube assembly
| Product name | PVS-31 Binocular Night Vision |
|
Power supply |
1.4-4.2V |
|
Installation |
Head mounted(standard Universal helmet interface) |
|
Control mode |
OFF/ON/AUTO/IR |
|
Power consumption |
<0.15W |
|
Battery life |
≥60hrs |
|
Magnification |
1X±5％ |
|
FOV |
40°±2° |
|
EPD |
7 mm |
|
IIT |
Gen2+/3 P43/P45 |
|
Lens system |
F1.2 / 25mm |
|
Resolution |
57-64lp/mm |
|
Optical distortion |
3% Max |
|
Coating |
Multi-layer broadband coating |
|
Focal Range |
250mm-∞ |
|
Eye relief |
25mm |
|
Diopter |
-4 - +2SD |
|
EPD adjustment range |
54-80mm |
|
IP Rating |
IP65 |
|
Dimension |
112 x 105 x 86mm |
|
Weight |
490G(battery included) |
|
Operating Temp |
-40 - +50℃ |
